Coding-Agent Monitor

The Coding-Agent Monitor is the frontend window onto coding-agent VLN runs: a one-click host for a Claude-SDK run (env + driver spawned per click) plus a log browser over every run any of the three harnesses ever wrote. Its hard promise is that the monitor holds no run state of its own — everything it renders is re-derived from the driver's on-disk artifacts (episode_{i}.jsonl flushed per event, summary.json rewritten per episode), so a browser refresh, a backend restart, or a CLI-launched run all display identically. For what the harness experiment is, see the capability page; for the AAS-facing programmatic API, see Coding-Agent Backend Surface; the human counterpart of this tab is Human Performance Tab.

One UI run, three processes. The Run button spawns a dedicated habitat env and the unified driver's UI entry; the SDK session reaches the world only through the stdio bridge. The router's read endpoints (right of the artifact box) also serve runs the runner never launched — the dashed browse roots.

1. What it does

The monitor has exactly two jobs, split across one page:

• Control — the Run panel starts and stops one Claude-SDK run at a time. A click on Run spawns a dedicated env_habitat auto_host and the unified driver's UI entry; a click on Stop tears both down. Control is deliberately narrow: episodes, split, max-turns, and model are the only knobs (coding_agent.py · StartRequest).

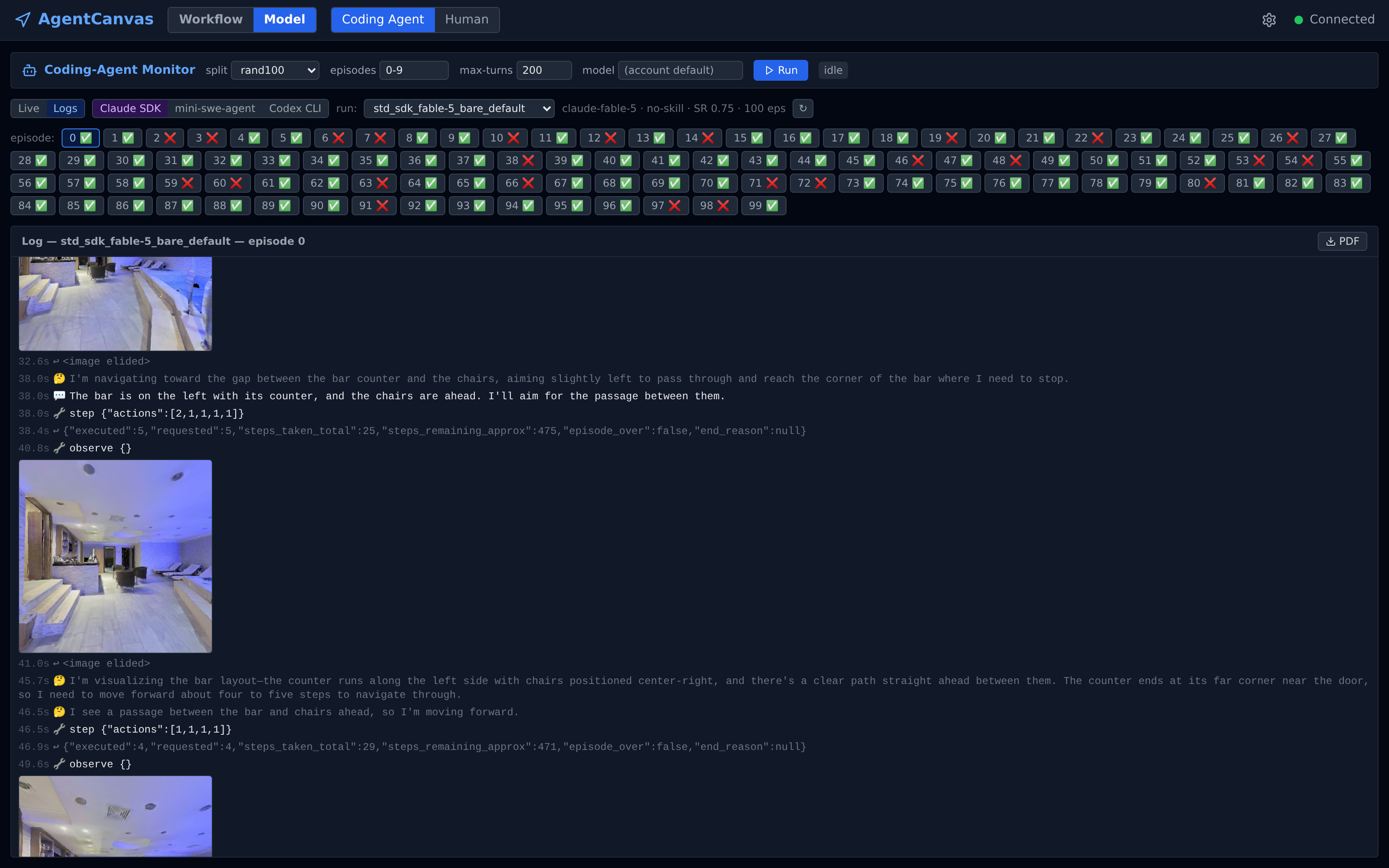

• Read — the log browser renders any run directory under the three harness output roots: the trajectory as a unified live log (thinking, tool calls, results), the agent's egocentric frames embedded inline at the exact observe() calls that produced them, per-episode metric badges, and a jsPDF export of the rendered log (CodingAgentPage.tsx · exportPdf).

The smallest run is a single POST — one episode, everything else defaults:

curl -X POST http://127.0.0.1:8000/api/coding-agent/start \
  -H 'Content-Type: application/json' -d '{"episodes": "0"}'
# → {"run_name": "ui_20260720_141530"} — everything else defaults
#   (split rand100, max-turns 80, model blank → SDK default); then poll:
curl http://127.0.0.1:8000/api/coding-agent/status

2. The run path — three processes per click

One click on Run produces a runner state machine plus two child processes; run state beyond liveness is never stored, only re-derived from disk.

1. coding_agent_runner.py · CodingAgentRunner.start — the lifespan-owned singleton service. Refuses if a run is active (states: idle | starting | running | stopping | stopped | finished | error), stamps the run name ui_%Y%m%d_%H%M%S, then spawns.
2. CodingAgentRunner._spawn — resolves the habitat interpreter and source file from the already-discovered env_habitat nodeset in the workspace registry (this module never imports habitat code — the framework import boundary), and starts the auto_host via BaseServer on a dynamically-free port, armed with PR_SET_PDEATHSIG. Then it launches coding-agent/uirun.py as a process-group child (start_new_session=True), stdout to driver.log in the run dir, so stop() can SIGTERM the driver together with its claude CLI + bridge children in one killpg (SIGKILL after 10 s).
3. uirun.py · main — the Monitor's driver entry. It builds an off-board CellSpec (harness sdk, condition "ui", bare=False, no skill, the request's max-turns; a blank model reaches the SDK as None = the CLI's default model, claude_sdk.py · ClaudeSdkAdapter._options) and calls the shared driver.py · run_cell core with cfg_overrides={"split": …}. UI runs therefore ride the same core as the standard board — env-panel placement, briefing from prompts.py, one clean SDK session per episode through bridges/mcp_bridge.py, driver-side env_habitat__evaluate, rate-limit retry, DRAIN, VRAM sampling — while their ui_* names keep them permanently off the board.

Status is artifact-derived: CodingAgentRunner.status reads summary.json for finished episodes and infers the active one as the first episode_{i}.jsonl present on disk but absent from the summary; _reap folds a self-exited driver into finished (rc 0) or error (rc≠0, pointing at driver.log).

3. The artifact contract — what the page renders

The page is a renderer for the EventSink vocabulary; the driver flushes per event, so whole-file-with-offset polling is real-time (coding_agent.py · textlog returns lines after offset plus the next offset; the frontend polls it at 1 Hz).

Everything lands under outputs/beta-coding-agent/{run}/: episode_{i}.jsonl (the curated events above), raw/episode_{i}.jsonl (full SDK message dump, image blobs elided), live_{i}/ frame PNGs dumped by the bridge, workdir_{i}/ session cwd, and the incrementally rewritten summary.json whose aggregate block applies the board 口径 (driver.py · aggregate).

4. The browse path — one surface, three roots

Both drivers of every harness write the same artifact layout, so one read surface serves them all; only the root differs (coding_agent.py · SOURCE_ROOTS):

GET /runs?source=… lists every directory under the root that has episode JSONLs or a summary (auto_host log folders are skipped); /runs/{run}/summary, /episode/{i}/textlog, and the frame endpoints all take the same source parameter. Run names allow dots (every std cell name carries one — opus-4.8, gpt-5.5); traversal stays blocked by the character allowlist plus an outright .. rejection (coding_agent.py · _run_dir).

5. Where it deviates from the mental model

6. Key files
