8Visual Canvas Editor

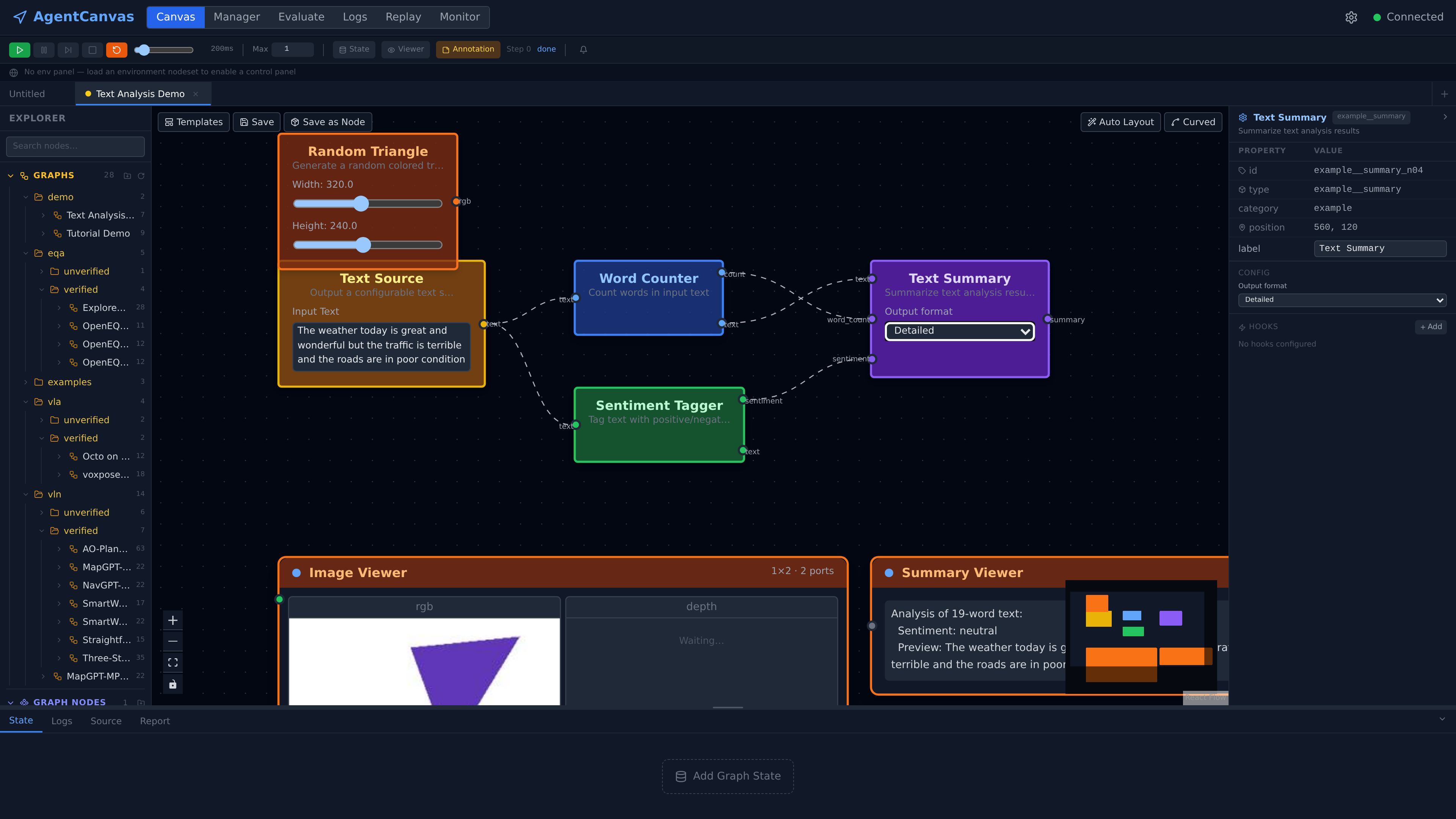

Every other capability page in this section describes a backend mechanism. This one is about the surface researchers actually touch: the in-browser canvas where graphs are authored, configured, run, and drilled into — one React app, one multiplexed WebSocket, no separate "design" and "monitor" tools. Load a graph from the explorer tree, drop nodes from the live catalog, wire them with type-checked connections, press Play, and watch every port light up — then open a node's Python source in the bottom drawer and hot-patch it without leaving the browser.

Design docs: Canvas System · Graph System · Execution Logs

1. Problem

An agent-graph authoring tool needs four things that don't combine easily:

• Edit topology — drag/drop nodes, draw typed wires, validate connections before submit.
• Configure nodes — every node ships its own settings (model name, temperature, image grid size); these can't be hand-coded panels per node type.
• Run and watch — show port-by-port output while the executor is running, not just a final summary.
• Drill in / out — open a composite, edit its inner graph, save back, without losing the outer canvas context.

If any of these is split across a separate page, the round-trip cost dominates. The unified editor folds all four into one ReactFlow canvas backed by a single WebSocket stream.

2. Three-Layer Architecture

• React Flow (@xyflow/react) renders nodes and edges; it owns geometry (positions, viewport, drag state).
• Zustand store (useFlowStore) owns graph semantics (typed wires, port resolution, composite drill-stack, per-node live output). Tab-aware: each open tab is an independent slice with its own nodes/edges/nodeOutputs; top-level selectors are projections of the active tab so older components keep working.
• WSManager (ws.ts) is one singleton WebSocket with auto-reconnect (exponential backoff 1s → 30s), a typed handler map, and a wildcard channel. Every panel that needs live data subscribes by frame type — no per-feature socket.

State-changing actions (load nodeset, run graph, cancel run) are HTTP because they need a synchronous result. Live execution is WS because it's a high-volume one-way fan-out.

3. Graph Editor

UnifiedGraphEditor is the same component at the root canvas and inside a composite's inner graph:

Both modes share the drag-drop pipeline, typed-wire compatibility check (isCompatibleWireConnection), and the same proxiedNodeTypes registry, so a composite editor looks and behaves identically to the root — only the persistence model differs.

3.1 Typed Wire Compatibility

Connections go through useFlowStore.onConnect → isCompatibleWireConnection. The check pulls each port's wire_type from portResolution (which walks _schema + live config.ports overrides for instance-derived ports such as iterIn, stateContainer, imageViewer) and rejects mismatches before the edge enters the store. This means the canvas can never reach the backend in a state that would only be caught by validate_graph_connectivity.

3.2 Explorer: Graphs Tree and Node Catalog

The left rail is ExplorerPanel, a VS Code-style sidebar with two sections:

• Graphs — a folder tree over both on-disk roots served by GET /api/graphs: workspace/graphs/ (editable graph templates, kind="graph") and workspace/graph_nodes/ (archived composite nodes, kind="node"). Double-clicking a graph opens it in a new tab; an archived composite instead drags onto the canvas as a composite node carrying its subgraph. The tree supports create/rename/delete folders and drag-to-move — all backed by the graphs API.
• Nodes — the drag-source catalog built by unifiedCatalog from a single endpoint, GET /api/components/node-schemas. The backend walks every registered node class (built-ins and currently loaded nodeset nodes alike) and returns type, display name, category, icon, ports with wire types, config_schema, default_config, and ui_config. The frontend splits entries into built-ins vs nodeset tools by the __ in the type name — there is no bundled node table; the palette is the backend registry, re-fetched on every nodeset load/unload and profile change.

Because a dropped node's initial state is the schema's default_config plus the schema itself (_schema), a freshly dropped node validates and renders its ports immediately, before any backend round-trip.

3.3 Auto-Layout and Edge Routing

The Auto Layout button sends the current graph to POST /api/graphs/layout together with each node's real rendered size (React Flow's measured width/height) — so wide nodes don't overlap the next fixed-pitch column. The backend returns new positions plus per-edge orthogonal waypoints; a Curved / Orthogonal toggle switches between default bezier wires and RoutedEdge, which draws the orthogonal path through the reserved channels.

4. Configuration Panel

Selecting a node opens PropertiesPanel, which renders fields straight from the node's ui_config.config_fields (or, for non-customised nodes, infers them from configSchema). One renderer (ConfigFieldRenderer) covers the widgets:

• text / textarea / select / slider / toggle / label — primitive fields
• port_list — used by iterIn/iterOut/stateContainer/imageViewer to add/remove typed ports; edits feed back into portResolution so the node's handle row updates live

LLM-backed nodes get an extra block from LlmModelControls. ModelRefPicker is one dropdown with three reference modes: Default (follow the active profile), a named profile, or Browse… (a provider → model cascade pinned inline on the node as {provider, model}). The panel then fetches GET /api/providers/{id}/capabilities for the resolved pair and imposes the parameter rulebook on the controls at edit time — locked parameters show the value and the reason, ranges clamp the slider, unsupported parameters gray out. The same rulebook is applied again at call time; the panel is just the "before" render of it.

There is no per-node React form. Adding a new node type means adding its ui_config and config_schema on the Python side; the UI is automatic.

5. Live Execution View

While the executor runs, the editor consumes four WS frame types from state.broadcast:

Each node's shell (NodeShell + HandleDot) renders a per-handle status dot driven by nodeOutputs[node_id]; receiving a value flips the handle to "filled", emitting flips the output handle to "fresh".

6. Composite Drill-Down

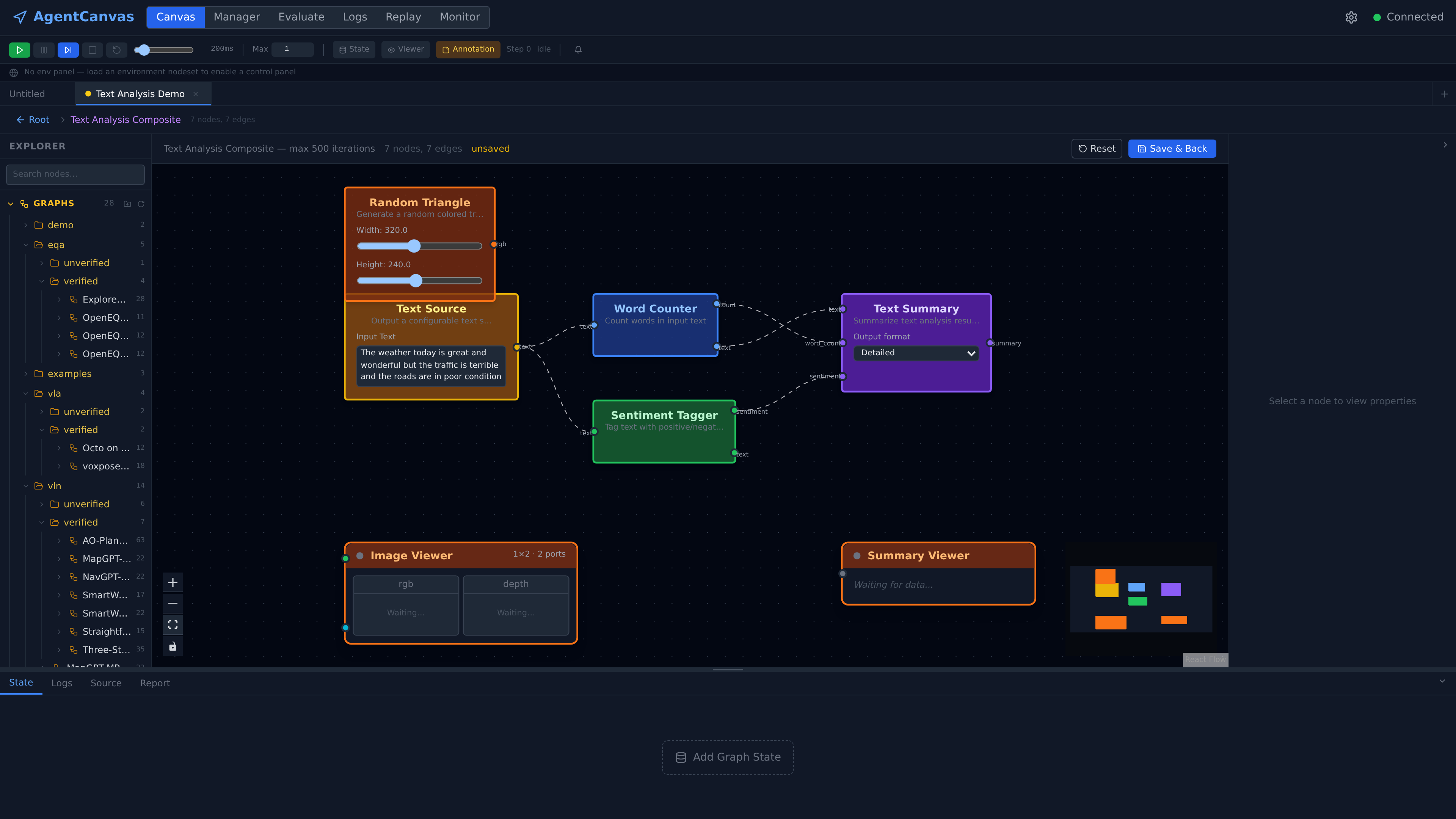

A composite node renders as a tile showing its name and inner node count, with two affordances: Preview expands an inline list of the inner node types, and Edit drills in. Drilling is not a modal — the canvas area swaps to the inner graph (UnifiedGraphEditor mode="subgraph", seeded from the composite's subgraph), and a breadcrumb bar appears above it: ← Root › {composite name}. Multi-level dives push frames onto the store's canvasStack; every crumb is clickable, so you can jump straight back to any depth. Edits live in local React state until Save & Back writes them into the parent composite node's data (Reset discards); the parent tab's nodes, positions, and selection are untouched in the store throughout.

7. Panels

The canvas is wrapped by a tab-aware shell: a tab bar for multiple open graphs, one resizable left rail, one resizable right rail, and one resizable bottom drawer. Every panel is a thin Zustand consumer:

Keyboard shortcuts follow IDE conventions — Ctrl+S saves in place (§3), ? opens the shortcut cheatsheet overlay.

8. Editing Node Source In Place

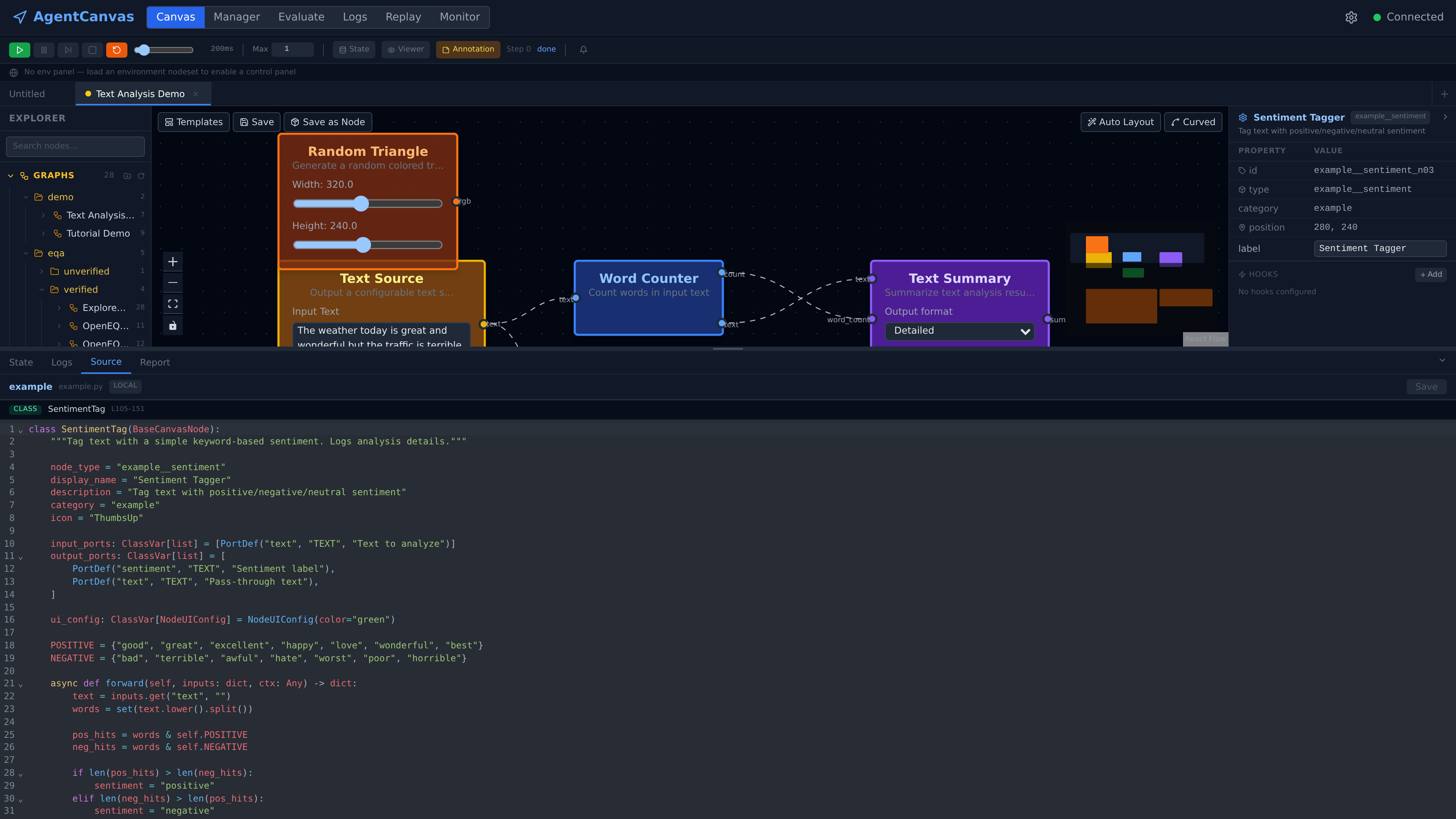

The bottom drawer's Source tab turns the canvas into a light IDE for nodeset code. Select a nodeset node and SourcePanel shows only that node's slice of its nodeset file — the module-level globals, the functions its class transitively references, and the class itself — one stacked CodeMirror editor per segment, each tagged with its kind and line range (CLASS SentimentTag · L105–151). Save splices the edited segments back into the file by line range; the backend syntax-checks the whole file before writing anything, and the nodeset watcher then hot-reloads the component — the save button walks "Saved" → "Reloaded ✓" as the components_changed broadcast comes back. Edit the forward() of a node, press Play again, and the new behaviour runs — no terminal round-trip.

9. Run Flow

Pressing Run in the toolbar fires runPipeline(graph):

1. Convert the live ReactFlow nodes/edges back to a GraphDefinition via fromFlowNodes + fromFlowEdges.
2. Client-side pre-flight: for eval_graph: true (default), require ≥1 graphOut node. Surfaces a clearer error than waiting for the backend's validate_graph_connectivity.
3. Build the LoopDefinition wire payload (nodes, edges, containers, access_grants, step_budget, terminationCondition, presetId, hooks).
4. POST to /api/navigate/run (ADR-platform-002 — single endpoint) with an optional execution_id and step_delay_ms.
5. The backend acknowledges with { execution_id } and starts emitting nav_status / nav_step / viewer_data / error_event frames over the already-open WS — no new connection.

Cancel goes through POST /api/navigate/run/stop; the toolbar disables itself based on nav_status.status.
